Examples

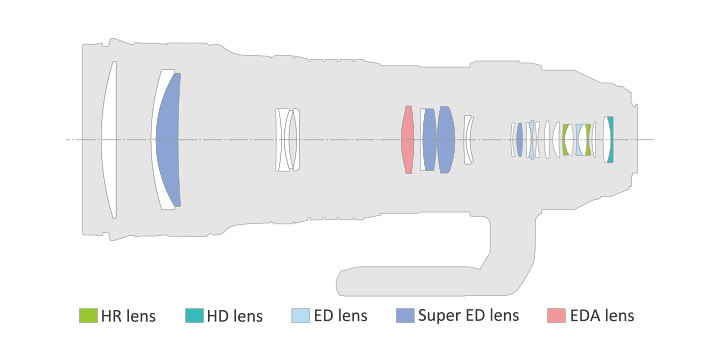

Lens construction diagram
Specifications
|
Focal Length |
150-500mm / 300-1000mm (35mm equivalent) |
|---|---|
| Lens construction | 28 elements in 18 groups (Built-in teleconverter: 7 elements in 4 groups) (1 EDA lens, 4 Super ED lenses, 2 ED lenses, 2 HR lenses, 1 HD lens) |
| Closest focusing distance | 1.3m (with / without a built-in teleconverter, throughout the zoom range) |
| Maximum image magnification | Wide:0.12x / Tele:0.29x (with a built-in teleconverter: Wide:0.15x / Tele:0.36x) Wide:0.25x / Tele:0.57x (with a built-in teleconverter: Wide:0.31x / Tele:0.71x) |
| Minimum Field Size | Wide:139.5×104.8mm / Tele:60.7×45.6mm (with a built-in teleconverter: Wide:111.6×83.9mm / Tele:48.6×36.5mm) |
| Number of Blades | 9 (circular aperture diaphragm) |
| Filter size | Diameter 95 mm |
| Dimensions | Ø115.8×314.3mm |
| Weight | 1,875g (without Lens Cap, Lens Rear Cap and Lens Hood) |
| Accessories | LH-115 Lens Hood, LC-115 Lens Cap, LR-2 Lens Rear Cap, CSS-P121 Lens Strap，LSC-1642 Lens case, Instruction Manual and Olympus Warranty Card |
