    OM Digital Solutions

    M.Zuiko Digital ED 9-18mm F4.0-5.6 IINew

    9 - 18 mm / (equiv. 35mm)18 - 36 mm

    FOR ON-THE-GO

    A typical super-wide-angle lens tends to be big, heavy, and expensive, making it difficult for most camera users to take advantage of them. The M.Zuiko Digital ED 9-18mm F4.0-5.6 II promises to change all this. With its ultra compact and lightweight design and the outstanding portability, thanks to the DSA (Dual Super Aspherical) lens, available only with the Four Thirds System, this lens will make super-wide-angle photography friendlier and more affordable. Despite its compact size — it’s just 49.5mm long and weighs a mere 155 grams — this lens boasts a long focusing range equivalent to 18-36 mm on a 35-mm camera lens.

    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIの製品写真 1

    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIの製品写真 2

    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIの製品写真 3

    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIの製品写真 4

    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIのサムネイル写真 1
    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIのサムネイル写真 2
    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIのサムネイル写真 3
    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIのサムネイル写真 4

    Examples

    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIのサムネイル写真 1
    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIのサムネイル写真 2
    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIのサムネイル写真 3
    • M.Zuiko Digital ED 9-18mm F4.0-5.6 IIのサムネイル写真 4

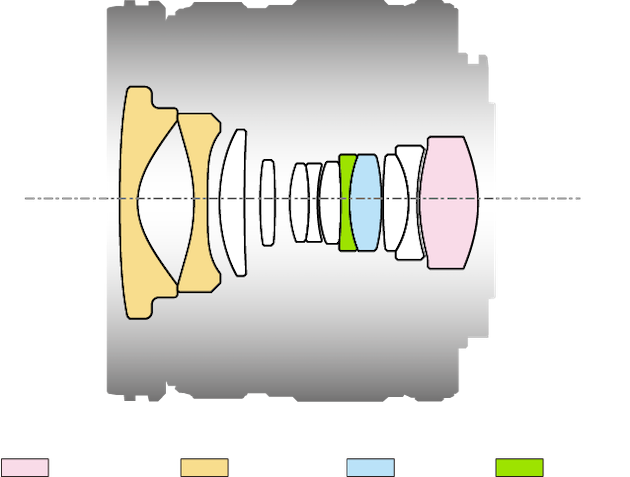

    Lens construction diagram

    M.Zuiko Digital ED 9-18mm F4.0-5.6 IILens construction diagram

    Specifications

    Focal length 9 - 18 mm / (equiv. 35mm)18 - 36 mm
    Lens construction 12 elements / 8 groups
    Closest focusing distance 0.25 m
    Maximum image magnification 0.05x (wide) / 0.1x (tele) / (equiv. 35mm) 0.11x (wide) / 0.2x (tele)
    Minimum Field Size 321 x 241.2 mm (wide)  173 x 130 mm (tele)
    Number of Blades 7 (Circular aperture diaphragm for natural background blurring)
    Dimensions Filter diamater 52 mm Length 49.3 mm Diameter 56.2 mm
    Weight Weight 154 g (without Lens Cap, Lens Rear Cap and Lens Hood)
