    M.Zuiko Digital ED 8-25mm F4.0 PRO LensNew

    8-25mm / 16-50mm (35mm equivalent)

    A Compact, Lightweight, High-magnification Zoom Lens Delivering Extremely High Image Quality Across the Entire Range

    1. Compact, lightweight, high-magnification zoom lens with a range from ultra wide-angle 16mm equivalent1 to 50mm equivalent1, boasting a magnification of 3.1x
    2. Excellent optical performance, delivering high resolution, sharp depiction across the entire zoom range
    3. Reliable dustproof, splashproof, and freezeproof performance (-10°C) and superb controls
    • M.Zuiko Digital ED 8-25mm F4.0 PRO Lensの製品写真 1

    • M.Zuiko Digital ED 8-25mm F4.0 PRO Lensの製品写真 2

    • M.Zuiko Digital ED 8-25mm F4.0 PRO Lensの製品写真 3

    • M.Zuiko Digital ED 8-25mm F4.0 PRO Lensのサムネイル写真 1
    • M.Zuiko Digital ED 8-25mm F4.0 PRO Lensのサムネイル写真 2
    • M.Zuiko Digital ED 8-25mm F4.0 PRO Lensのサムネイル写真 3

    Examples

    • M.Zuiko Digital ED 8-25mm F4.0 PRO Lensのサムネイル写真 1
    • M.Zuiko Digital ED 8-25mm F4.0 PRO Lensのサムネイル写真 2
    • M.Zuiko Digital ED 8-25mm F4.0 PRO Lensのサムネイル写真 3

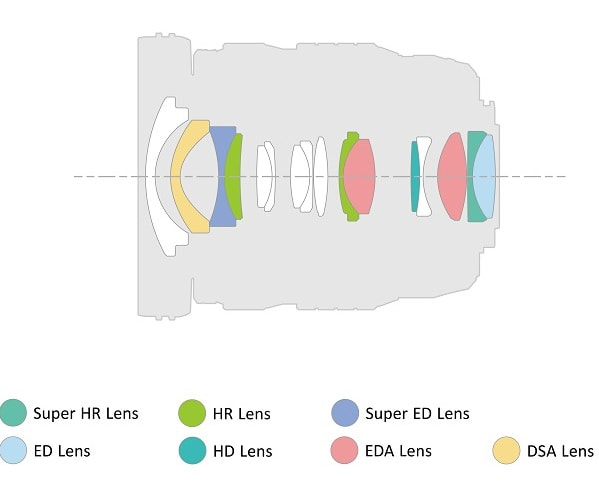

    Lens construction diagram

    M.Zuiko Digital ED 8-25mm F4.0 PRO LensLens construction diagram

    Specifications

    Focal length 8-25mm / 16-50mm (35mm equivalent)
    Lens construction

    16 elements in 10 groups
    (1 DSA lens, 2 Aspherical ED lenses, 1 Super ED lens, 1 ED lens,
    1 Super HR lens, 1 HR lens, 1 HD lens)

    Closest focusing distance 0.23 m (throughout the zoom range)
    Maximum image magnification

    Wide: 0.07x / Tele: 0.21x

           35mm Equivalent Max. Image Magnification    Wide: 0.14x / Tele: 0.42x

    Minimum Field Size Wide: 241.9 x 181.8 mm / Tele: 83.0 x 62.4 mm
    Number of Blades 7 (circular aperture diaphragm)
    Filter Size Diameter 72 mm
    Dimensions Diameter 77 x 88.5 mm
    Weight 411 g (without lens cap, lens rear cap and lens hood)
    Box Contents LC-72C Lens Cap, LR-2 Lens Rear Cap, LH-76E Lens Hood,
    CS-53 Wrapping Cloth, Instruction Manual, Olympus Local Warranty Card
    Optional Accessories PRF-ZD72 PRO Protection Filter
    LSC-0914 Lens Case
