Examples

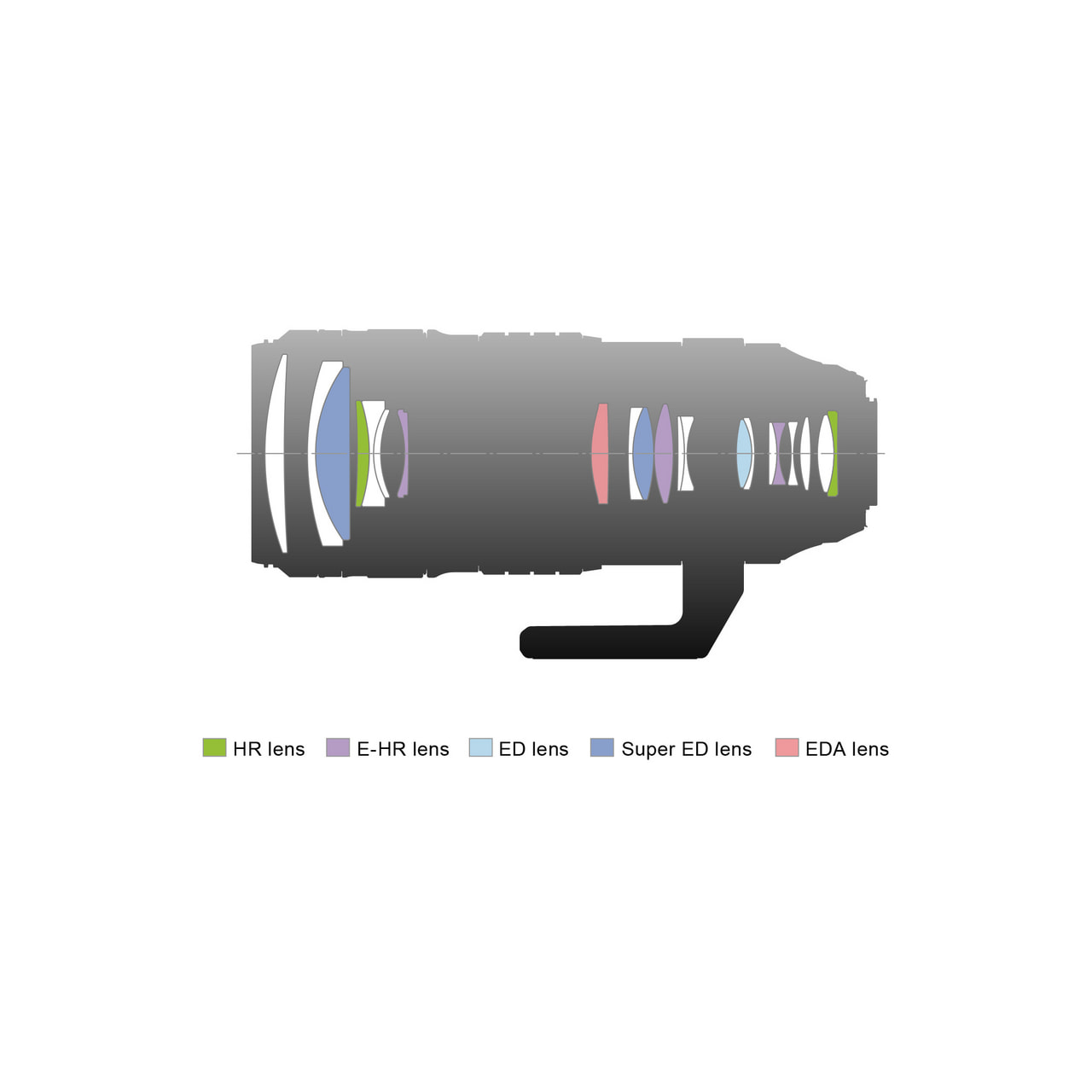

Lens construction diagram
Specifications
| Focal length | 50-200 mm / 100-400 mm(35 mm equivalent) |
|---|---|
| Lens construction | 21 elements in 13 groups |
| Closest focusing distance | 0.78 m / 30.71 in. |
| Maximum image magnification | 0.08x (Wide) / 0.25x (Tele) |
| Filter size | Ø77 mm / 3.03 in |
| Dimensions | Ø91.4×225.8 mm / φ3.60 x 8.89 in. |
| Weight |
1,250 g / 44.1 oz.(with tripod base) 1,075 g / 37.9 oz.(without tripod base) |
| Accessories | Lens Cap (LC-77C), Lens Rear Cap (LR-2), Lens Hood (LH-82C) |
