Examples

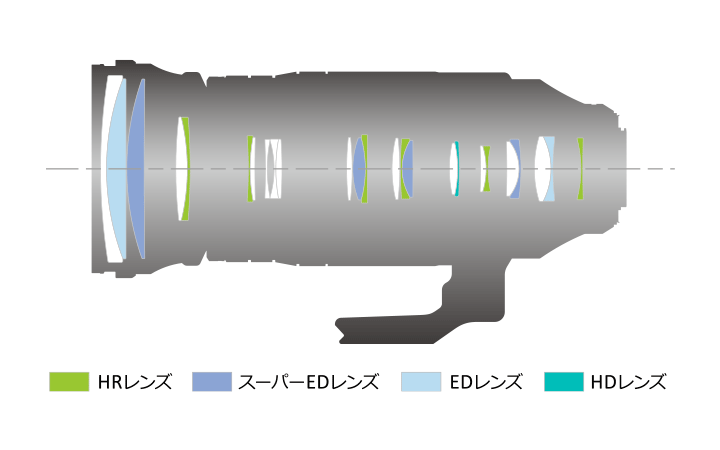

Lens construction diagram
Specifications
| Focal length | 150 - 600 mm (equiv. 35mm) 300 - 1,200 mm |
|---|---|
| Lens construction | 25 elements / 15 groups |
| Closest focusing distance | 0.56 m (wide) / 2.8 m (tele) |
| Maximum image magnification | 0.35x (wide) / 0.20x (tele) (equiv. 35mm) 0.70x (wide) / 0.39x (tele) |
| Minimum Field Size |
49.4 x 37.1 mm (wide) 88.6 x 66.6 mm (tele) |
| Number of Blades | 9 (Circular aperture diaphragm for natural background blurring) |
| Dimensions | Diameter 109.4 mm (greatest dimension) Length 264.4 mm |
| Weight | 2,065 g (without Lens Cap, Lens Rear Cap and Lens Hood) |
