Examples

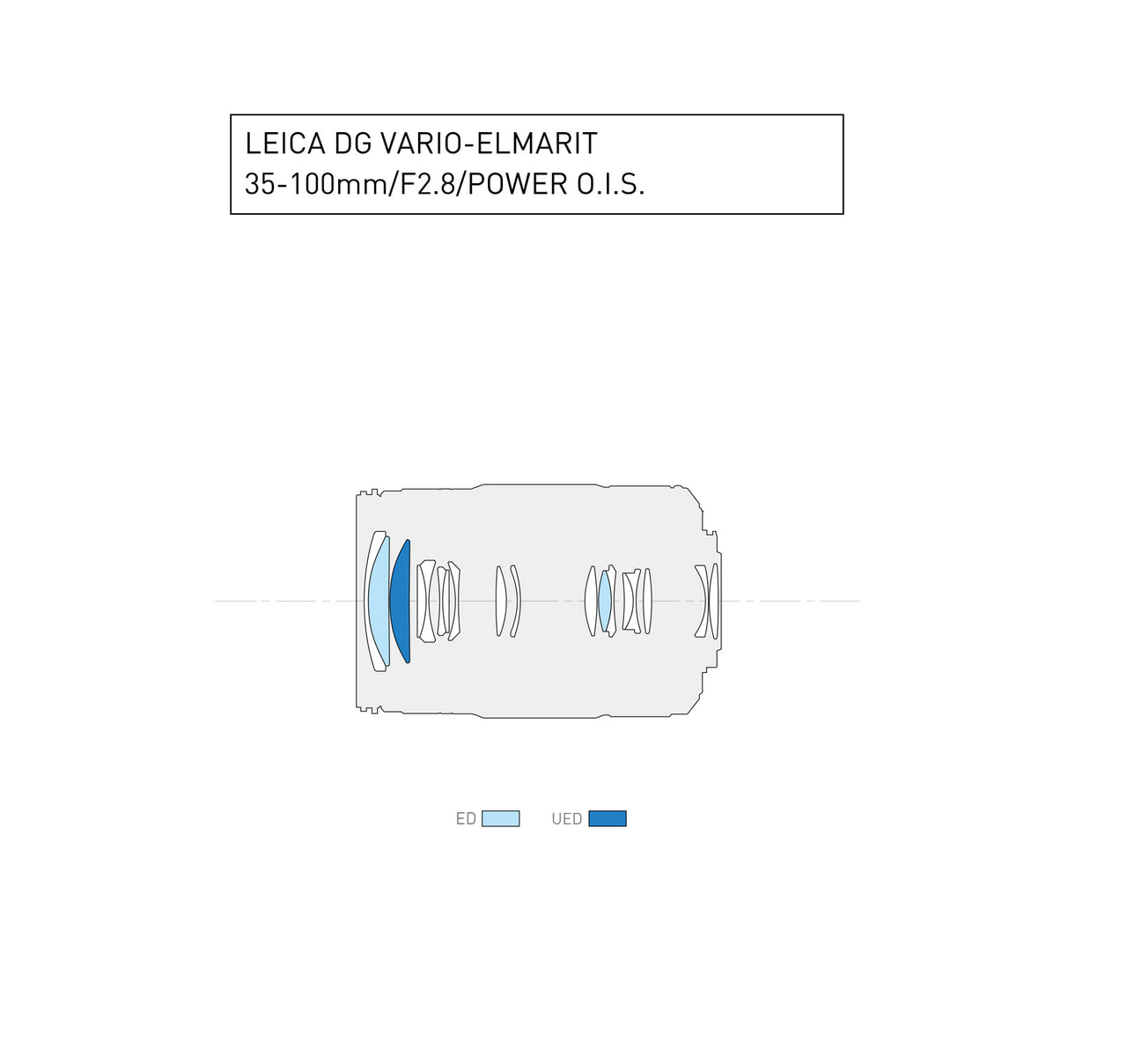

Lens construction diagram
Specifications
| Focal length | 35-100mm (35mm camera equivalent 70-200mm) |
|---|---|
| Lens construction | 18 elements in 13 groups (1 UED lens, 2 ED lenses) |
| Closest focusing distance | 0.85m |
| Maximum image magnification | 0.1x / 0.2x (35mm camera equivalent) |
| Number of Blades | 7 diaphragm blades / Circular aperture diaphragm |
| Filster size | φ58mm |
| Dimensions | Approx. φ67.4mm×Approx. 99.9mm (from the tip of the lens to the base side of the lens mount) |
| Weight | Approx. 360g |
| Accessories | Lens cap, Lens rear cap, Lens hood, Lens storage bag |
