Examples

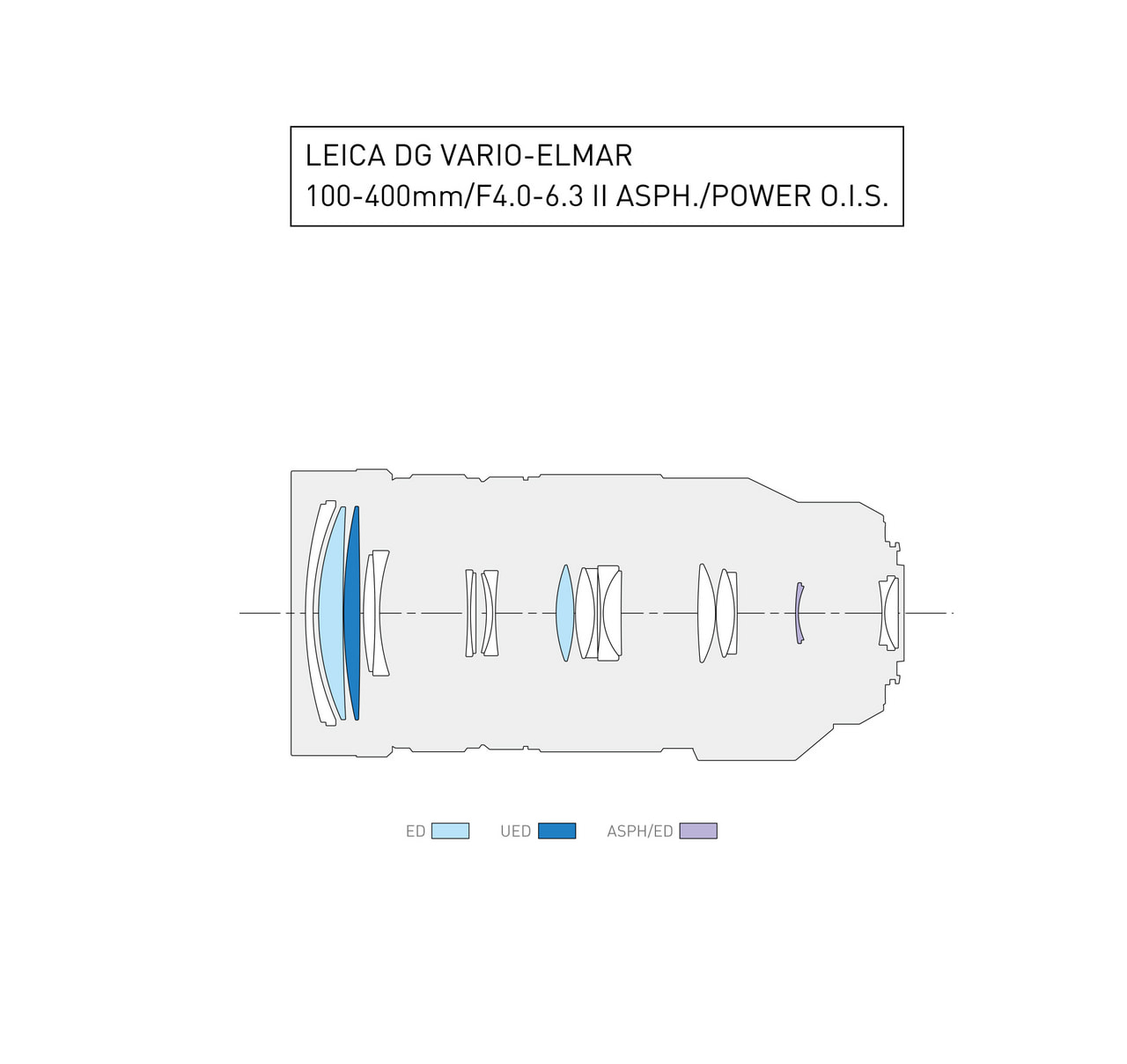

Lens construction diagram
Specifications
| Focal length | 100-400mm |
|---|---|
| Lens construction | 20 elements in 13 groups (1 aspherical ED lens, 1 UED lens, 2 ED lenses) |
| Closest focusing distance | 1.3m |
| Maximum image magnification | 0.25x / 0.5x (35mm camera equivalent) |
| Number of Blades | 9 diaphragm blades / Circular aperture diaphragm |
| Filter size | φ72mm |
| Dimensions | Approx. φ83.0mm×Approx. 171.5mm (from the tip of the lens to the base side of the lens mount) |
| Weight | Approx. 985g |
| Accessories | Lens cap, Lens rear cap, External lens hood, External tripod mount, Lens storage bag |
