Examples

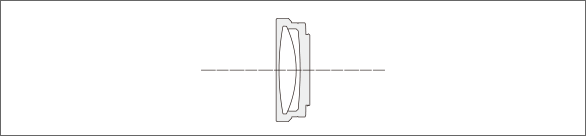

Lens construction diagram
Specifications
| Lens construction | 2 element in 1 groups |
|---|---|
| Dimensions | φ53 x 2.09mm / φ15.1 x 0.59 in. |
| Weight | 52 / 1.8 oz. |
| Accessories | step-up ring |
OM Digital Solutions

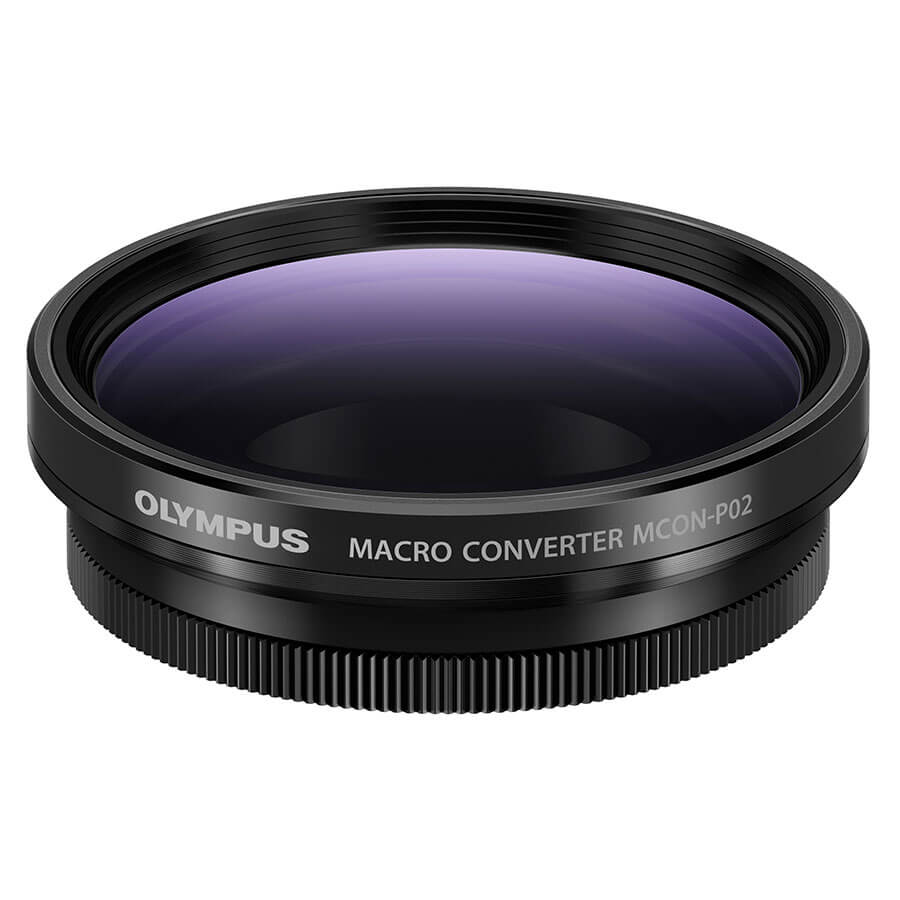

Macro Converter MCON-P02
This is a macro conversion lens compatible with lens filter diameters of φ37mm and φ46mm. This accessory improves the magnification performance and image quality of the Macro Conversion Lens MCON-P01, and is compatible with a total of seven* M.ZUIKO and M.ZUIKO PREMIUM series lenses.
When combined with the M.ZUIKO DIGITAL ED 14-42mm F3.5-5.6 EZ, the minimum shooting distance is 18 cm, and the maximum shooting magnification is 0.381x (35mm equivalent: 0.762x) for easy macro shooting.
A step-up ring is included for attachment to a lens with a filter diameter of φ37mm.
Master Lens:
- M.ZUIKO DIGITAL ED 14-42mm F3.5-5.6 EZ
- M.ZUIKO DIGITAL 14-42mm F3.5-5.6II
- M.ZUIKO DIGITAL 14-42mm F3.5-5.6IIR
- M.ZUIKO DIGITAL 45mm F1.8
(or more with step-up ring)
- M.ZUIKO DIGITAL 25mm F1.8
- M.ZUIKO DIGITAL 17mm F1.8
- M.ZUIKO DIGITAL ED 12mm F2.0
* Do not attach the converter lens to a non-compatible lens to use with the camera, as doing so could cause serious damage to the lens.
* This converter lens cannot be used in combination with the Protection Filter or Automatic Opening Lens Cap.
