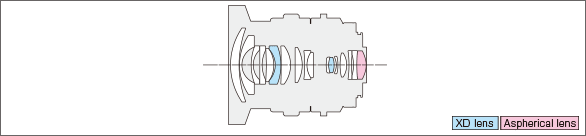

Lens construction diagram
Specifications
| Focal Length | 8.5mm / 17mm (35mm equivalent) |
|---|---|
| Lens construction | 17 elements in 14 groups |
| Closest focusing distance | 0.2 m / 7.87 in. |
| Maximum image magnification | 0.08x (0.16x: 35mm equivalent) |
| Filter size | 86mm (mounted to lens hood) |
| Dimensions | φ71.5 x 86.8mm / φ2.81 x 3.42 in.(excluding lens hood) |
| Weight | 440 g / 15.5 oz. |
| Accessories | Front/rear lens caps, Standard hood, Soft case |
