    M.ZUIKO DIGITAL 17mm F1.8 IINew

    17mm / 34mm (35mm equivalent)

    Splash & Dust-Proof Versatile Prime Lenses for Landscapes, City Snapshots, and Portraits

    1. A wide-angle single–focal-length lens with a large-diameter f/1.8 aperture, enabling both pan-focus shooting and beautiful bokeh effects
    2. Superb weather-resistant performance with IPX1-rated splash-proof   and dustproof protection

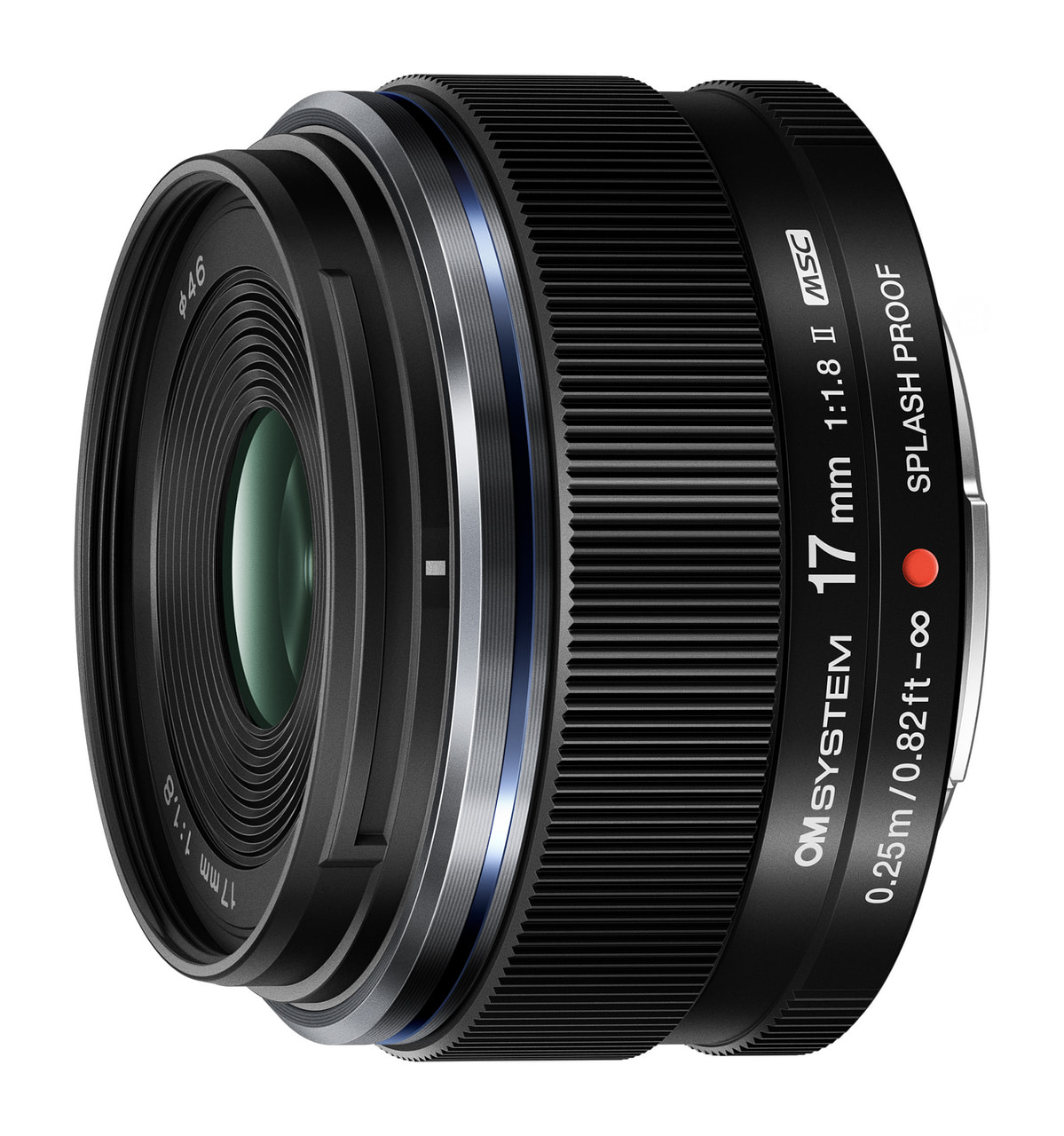

    • M.ZUIKO DIGITAL 17mm F1.8 IIの製品写真 1

    • M.ZUIKO DIGITAL 17mm F1.8 IIの製品写真 2

    • M.ZUIKO DIGITAL 17mm F1.8 IIのサムネイル写真 1
    • M.ZUIKO DIGITAL 17mm F1.8 IIのサムネイル写真 2

    Examples

    • M.ZUIKO DIGITAL 17mm F1.8 IIのサムネイル写真 1
    • M.ZUIKO DIGITAL 17mm F1.8 IIのサムネイル写真 2

    Lens construction diagram

    M.ZUIKO DIGITAL 17mm F1.8 IILens construction diagram

    Specifications

    Focal Length  17mm / 34mm (35mm equivalent)
    Lens construction  9 elements in 6 groups
    Closest focusing distance  0.25m / 9.84 in.
    Maximum image magnification  0.08x(0.16x: 35mm equivalent)
    Filter size  46mm
    Dimensions  φ57.6 x 37.6mm / φ2.27x 1.48 in.
    Weight  112g / 4. 0oz.
    Accessories Lens Cap (LC-46), Lens Rear Cap (LR-2), Lens Hood (LH-49B)
