Examples

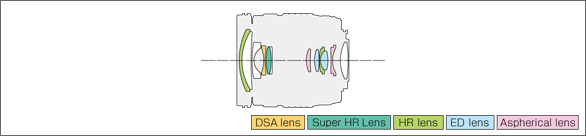

Lens construction diagram
Specifications
| Focal Length | 12-45mm / 24-90mm (35mm equivalent) |
|---|---|
| Lens construction | 12 elements in 9 groups |
| Closest focusing distance | 0.12m / 4.72 in. (wide) , 0.23m / 9.06in. (tele) |
| Maximum image magnification | 0.25x (Wide / Tele) (35mm equivalent: 0.5x (Wide / Tele)) |
| Filter size | φ58mm |
| Dimensions | φ63.4 x 70.0mm / φ2.5 x 2.76 in. |
| Weight | 254g / 8.96 oz. |
| Accessories | Lens hood (LH-61G ), Lens cap (LC-58F), Lens rear cap (LR-2), Wrapping cloth (CS-53) |
