Specifications
| Effective Sensor Size | Super 35mm CMOS Sensor 24.576mm×13.824mm |
|---|---|
| Shooting Resolutions | About 33 million pixels |
| Dimensions | Camera (AB-4830) 65（W）×65（H）×88.5（D）mm Input/Output (AC-4829) 210（W）×133（H）×370（D）mm |
| Weight | 4kg |
ASTRODESIGN
AB-4830/AC-4829

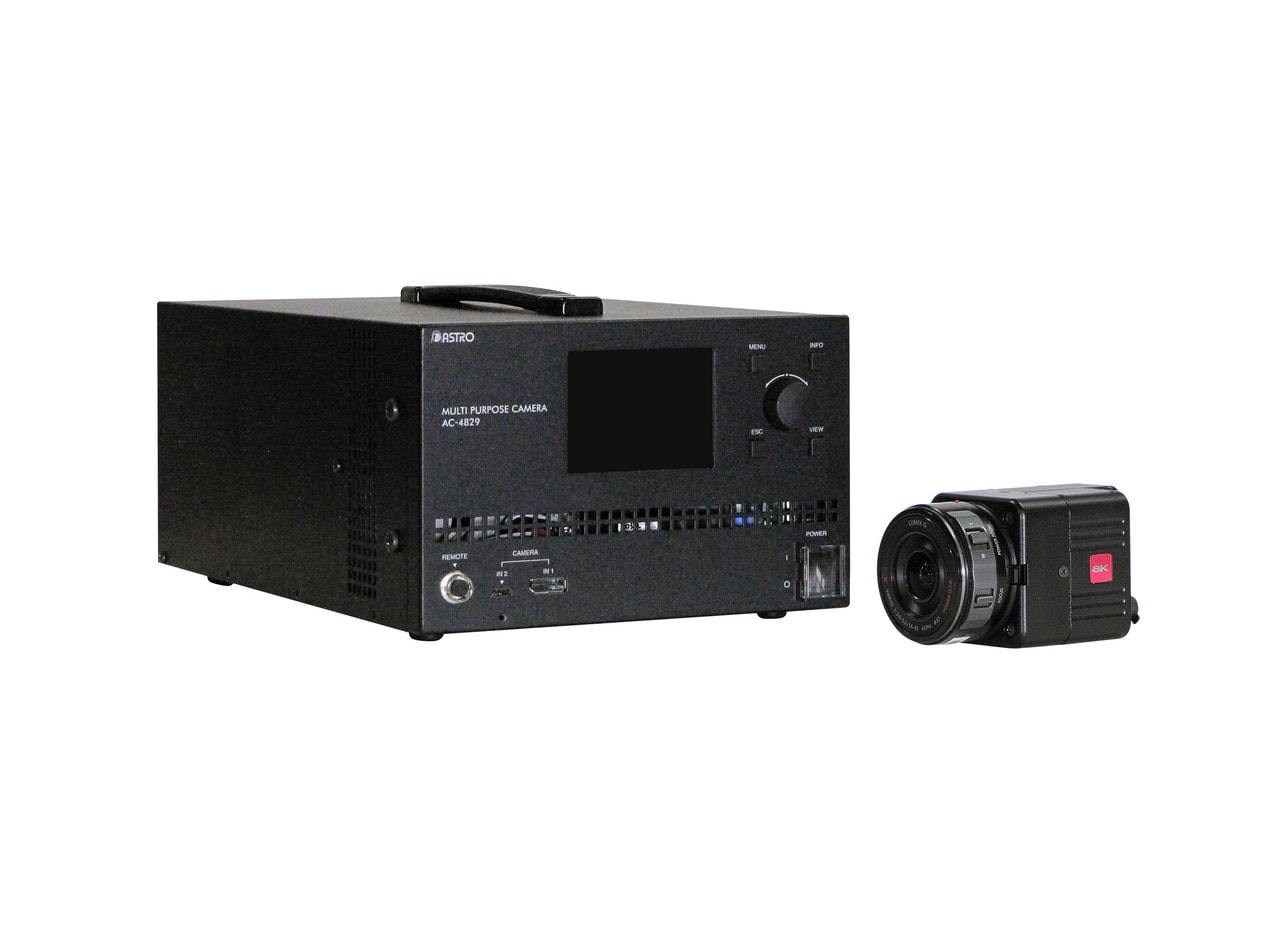

A fanless, lightweight (weight: 340g) and compact 8K camera system
A fanless, lightweight (weight: 340g) and compact 8K camera system equipped with a camera sensor featuring a global shutter function. The size of camera head enclosure is 65mm×65mm. The system consists of a camera head and a CCU. The captured video is output from the CCU in 8K in real-time with 4 lines of 12G-SDI. The camera and CCU can be separated by up to 100 meters, making it possible to shoot from a remote location.
